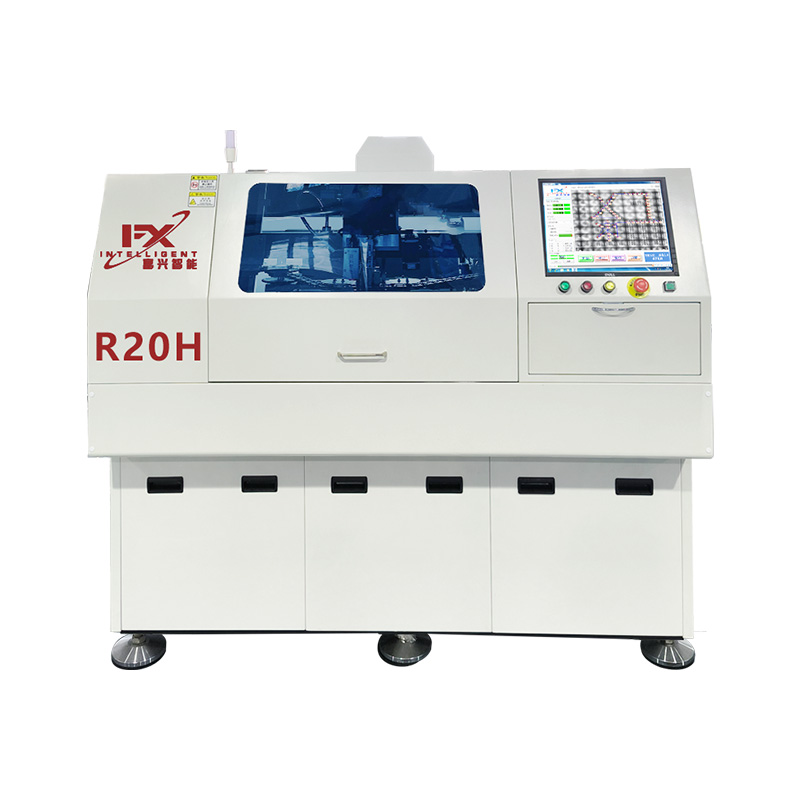

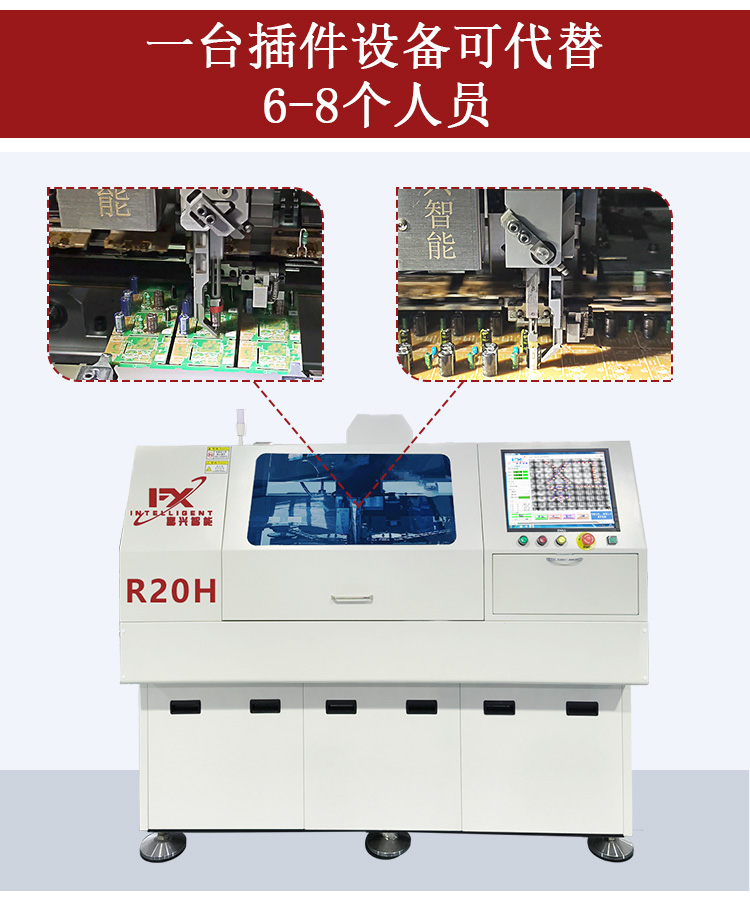

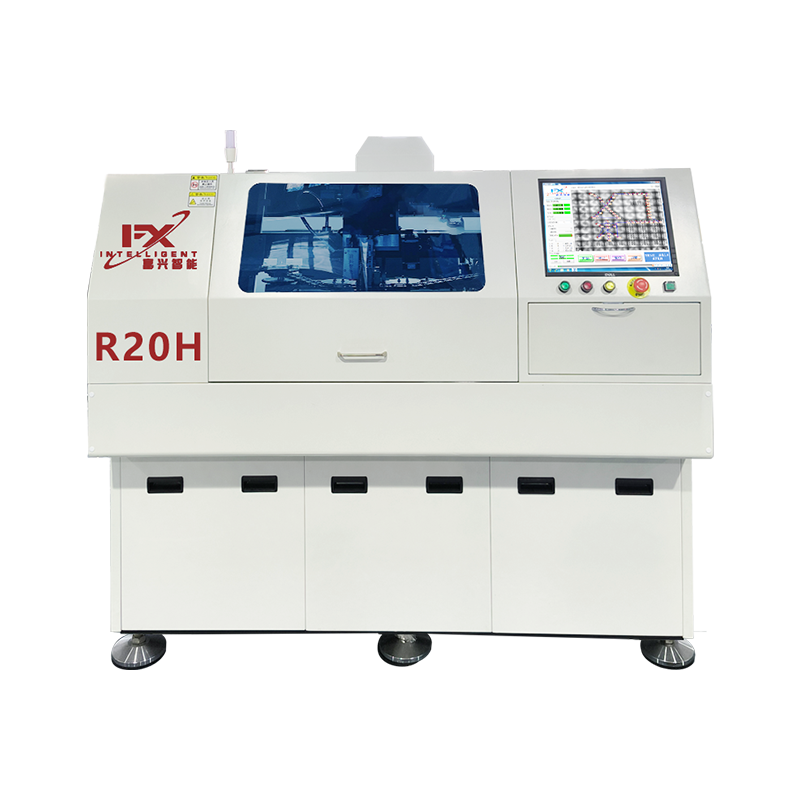

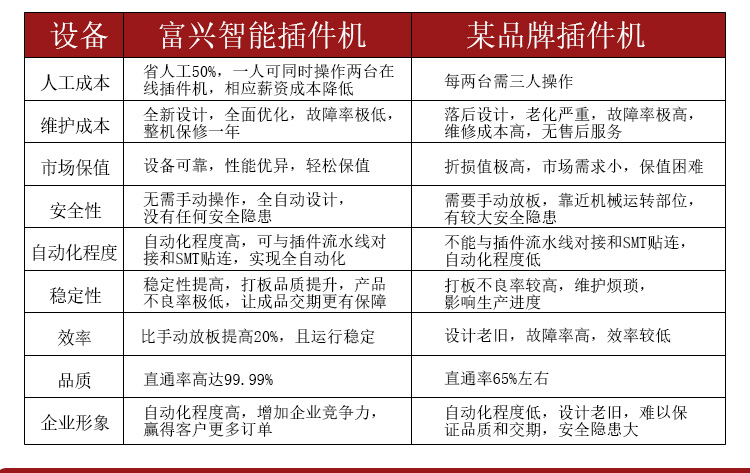

立式离线插件机R20H
|

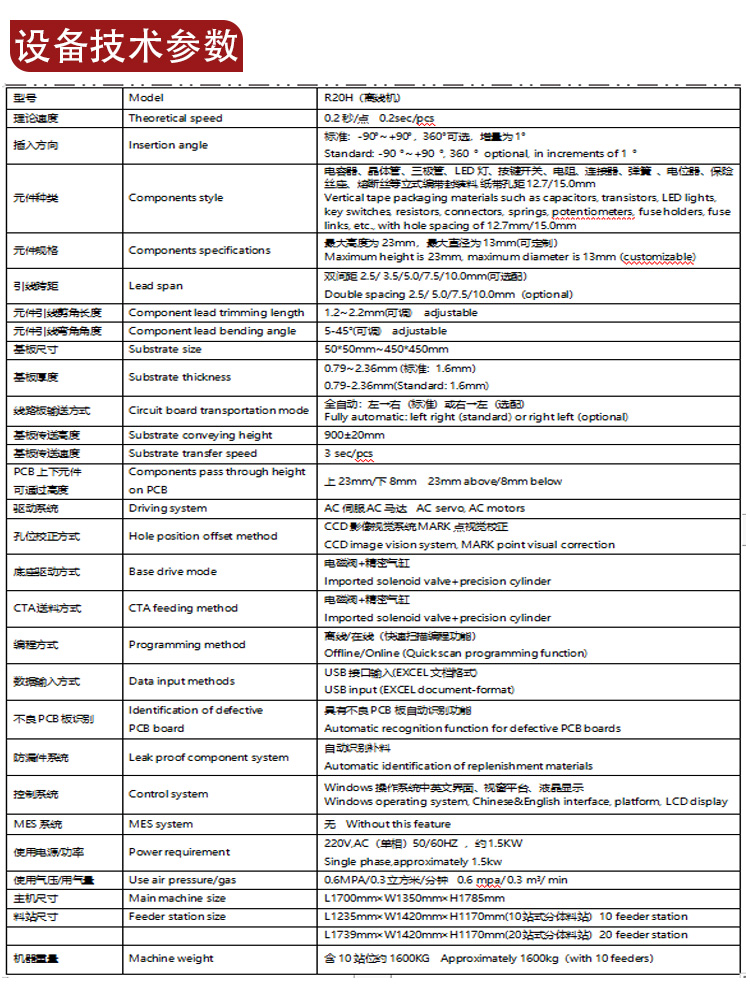

型号 |
Model |
R20H（离线机） |
|
理论速度 |
Theoretical speed |
0.2秒/点 0.2sec/pcs |
|
插入方向 |
Insertion angle |
标准：-90°~+90°，360°可选，增量为1° Standard: -90 °~+90 °, 360 ° optional, in increments of 1 ° |
|

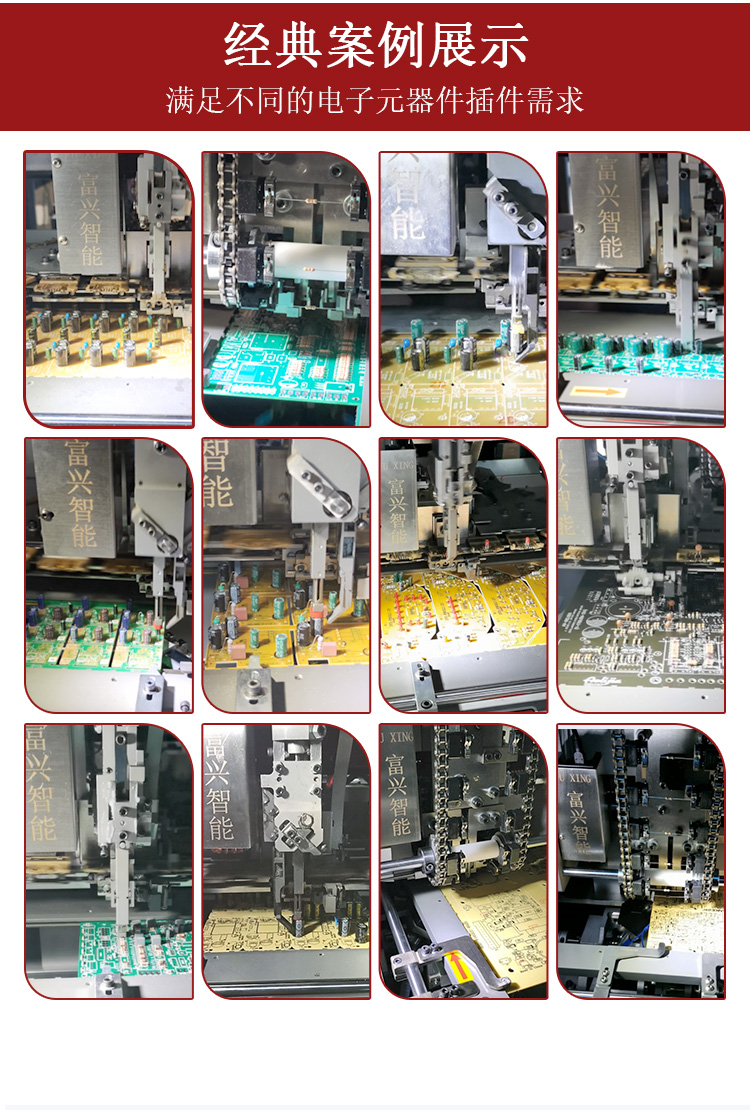

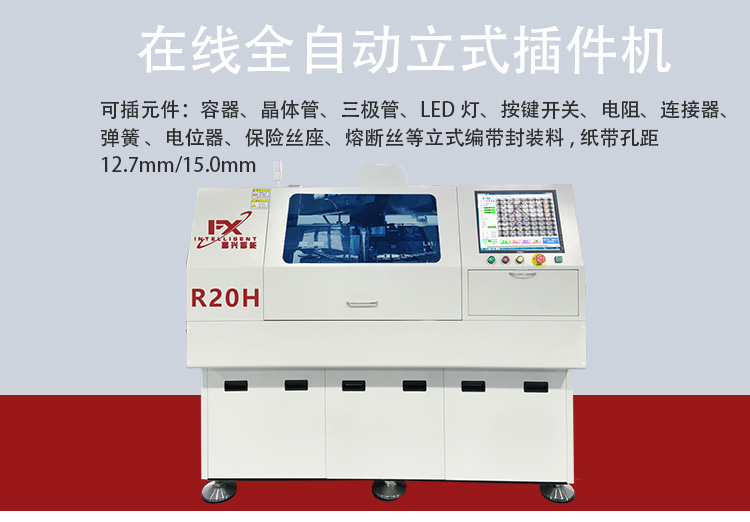

元件种类 |
Components style |
电容器、晶体管、三极管、LED灯、按键开关、电阻、连接器、弹簧 、电位器、保险丝座、熔断丝等立式编带封装料,纸带孔距12.7/15.0mm Vertical tape packaging materials such as capacitors, transistors, LED lights, key switches, resistors, connectors, springs, potentiometers, fuse holders, fuse links, etc., with hole spacing of 12.7mm/15.0mm |
|

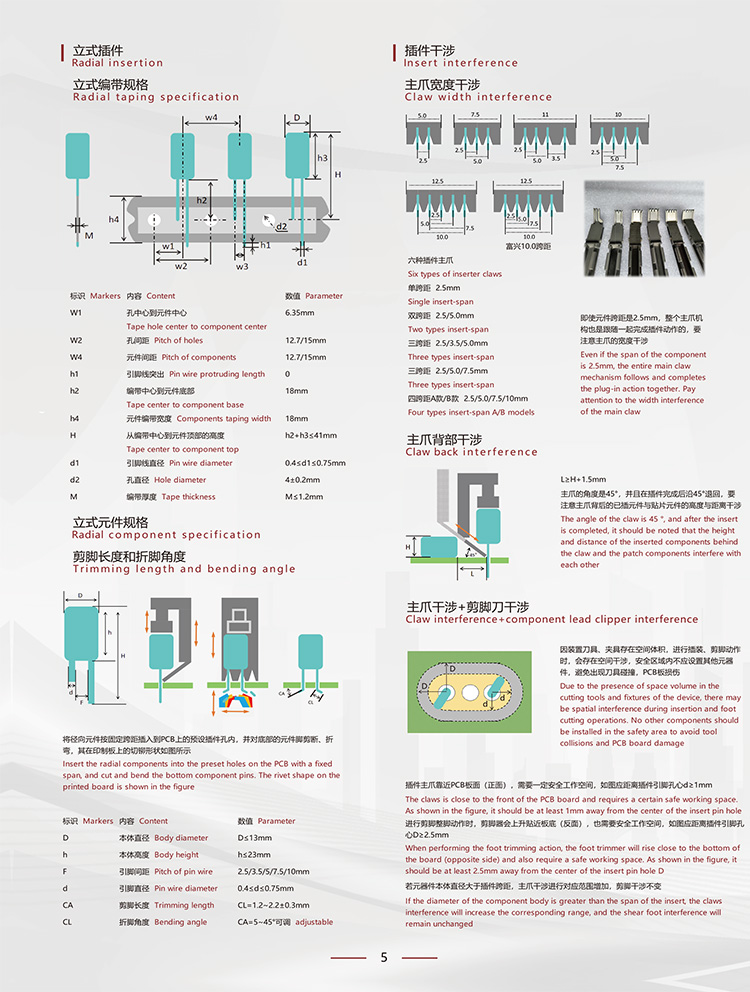

元件规格 |
Components specifications |
最大高度为23mm，最大直径为13mm(可定制） Maximum height is 23mm, maximum diameter is 13mm (customizable) |
|

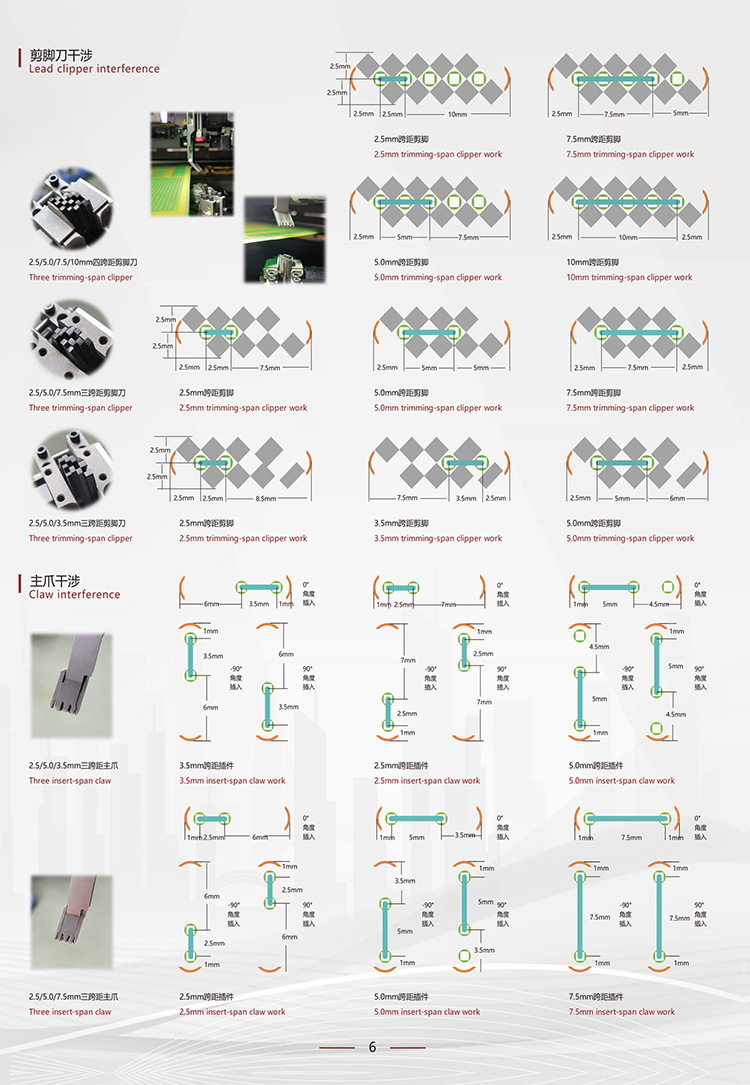

引线跨距 |
Lead span |
双间距2.5/ 3.5/5.0/7.5/10.0mm(可选配） Double spacing 2.5/ 5.0/7.5/10.0mm（optional） |
|

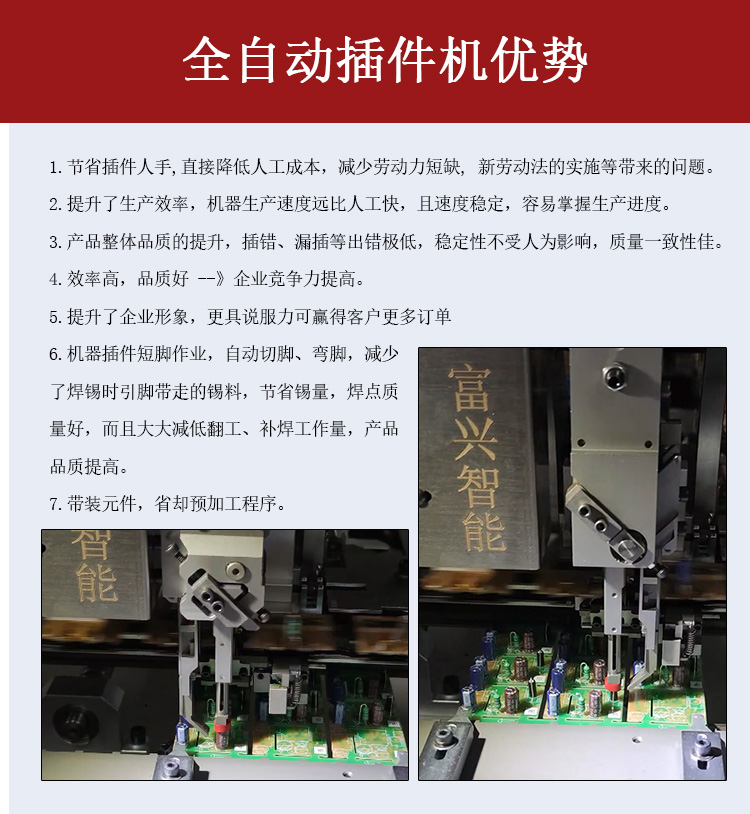

元件引线剪角长度 |
Component lead trimming length |
1.2~2.2mm(可调) adjustable |
|
元件引线弯角角度 |
Component lead bending angle |
5-45°(可调) adjustable |
|
基板尺寸 |
Substrate size |
50*50mm~450*450mm |
|
基板厚度 |
Substrate thickness |
0.79~2.36mm (标准：1.6mm） 0.79-2.36mm(Standard: 1.6mm) |
|
线路板输送方式 |
Circuit board transportation mode |
全自动：左→右（标准）或右→左（选配） Fully automatic: left right (standard) or right left (optional) |
|
基板传送高度 |
Substrate conveying height |
900±20mm |
|
基板传送速度 |
Substrate transfer speed |
3 sec/pcs |
|
PCB上下元件 可通过高度 |
Components pass through height on PCB |
上23mm/下8mm 23mm above/8mm below |
|
驱动系统 |
Driving system |
AC伺服,AC马达 AC servo, AC motors |
|
孔位校正方式 |
Hole position offset method |
CCD影像视觉系统,MARK点视觉校正 CCD image vision system, MARK point visual correction |
|
底座驱动方式 |
Base drive mode |
电磁阀+精密气缸 Imported solenoid valve+precision cylinder |
|
CTA送料方式 |
CTA feeding method |
电磁阀+精密气缸 Imported solenoid valve+precision cylinder |
|
编程方式 |
Programming method |
离线/在线（快速扫描编程功能） Offline/Online (Quick scan programming function) |
|
数据输入方式 |
Data input methods |
USB接口输入(EXCEL文档格式) USB input (EXCEL document-format) |
|
不良PCB板识别 |
Identification of defective |
具有不良PCB板自动识别功能 Automatic recognition function for defective PCB boards |
|
防漏件系统 |
Leak proof component system |
自动识别补料 Automatic identification of replenishment materials |
|
控制系统 |
Control system |
Windows操作系统中英文界面、视窗平台、液晶显示 Windows operating system, Chinese&English interface, platform, LCD display |
|
MES系统 |
MES system |
无 Without this feature |
|
使用电源/功率 |
Power requirement |
220V,AC（单相）50/60HZ ，约1.5KW |
|
使用气压/用气量 |
Use air pressure/gas |
0.6MPA/0.3立方米/分钟 0.6 mpa/ 0.3 m³/ min |
|
主机尺寸 |
Main machine size |
L1700mm×W1350mm×H1785mm |
|
料站尺寸 |
Feeder station size |
L1235mm×W1420mm×H1170mm(10站式分体料站）10 feeder station |
|
|
|
L1739mm×W1420mm×H1170mm(20站式分体料站）20 feeder station |
|
机器重量 |
Machine weight |
含10站位约1600KG Approximately 1600kg（with 10 feeders） |
